SHANTUI Construction Road Roller 25 Ton Mechanism Single Drum Road Roller Vibratory SR26M-3
Product Description of Construction Road Roller 25 Ton Mechanism Single Drum Road Roller
Shanghai SC8D series turbocharged diesel engine is jointly developed with Austrian AVL, featuring prominent performances, high reliability, and good fuel economy, and is one mainstream installed engine in China’s construction machinery industry.
1.Shantui’s patented new vibratory drum features more excellent structure and stability performances. The super-high lubricating oil capacity guarantees the good lubrication and cooling for the vibration system.
2.The vibratory pumps and vibratory motors adopt international renowned brand products to guarantee the reliability and compacting performance of the vibration system.
3.The single gearshift joystick can effectively promote the working efficiency of the operator and relieve the fatigue.
4.The imported comfortable and firm seat adjustable in longitudinal direction is equipped with the left and right foldable armrests and the retractable seat belt.
5.The cab is equipped with air conditioning system to provide a comfortable working environment and the rubber damper design isolates the operator from the vibration source to remarkably relieve the working strength.
6.Two independent brake systems, namely service brake (foot brake) and parking brake (handbrake), feature stable braking, high safety and reliability, simple structure, and easy maintenances.
7.Standard double-amplitude function expands the application scope of the equipment. The high span between high and low centrifugal forces helps the establishment of compacting schemes for different density specifications.
8.The design of the drum vibration parameters conforms to the requirements of working site and multiple optional equipment are provided to enhance the working condition adaptability of the machine. Large angle openable hood, maintenance-free battery, real-time monitoring of pressures and temperatures, and reasonable arrangement of diesel and working oil tanks enable Shan tui road roller to realize excellent maintenance performance, shorten the shutdown time, and improve the utilization rate of whole machine.
Specification of Construction Road Roller 25 Ton Mechanism Single Drum Road Roller
| Type | Unit | XS143J |
| Operating weight | kg | 14000 |
| Load on front drum | kg | 8200 |
| Load on rear wheels | kg | 5800 |
| Drum width | mm | 2130 |
| Static linear load | N/cm | 385 |
| Vibration frequency(Low/High) | Hz | 28/35 |
| Nominal amplitude(High/Low) | mm | 1.86/0.88 |
| Excitation force(High/Low) | KN | 305/225 |
| Travel speed | km/h | 0~12 |
| Steering angle | ° | ±33 |
| Swing angle | ° | ±10 |
| Theoretical gradeability | % | 55 |
| Min. external turning radius | mm | 6415 |
| Engine model | | B5.9 |
| Engine power | kw | 110 |
| Rated engine speed | r/min | 2200 |
| Engine oil consumption | g/kW.h | 232 |
| Hydraulic oil tank capacity | L | 240 |
| Fuel tank capacity | L | 240 |

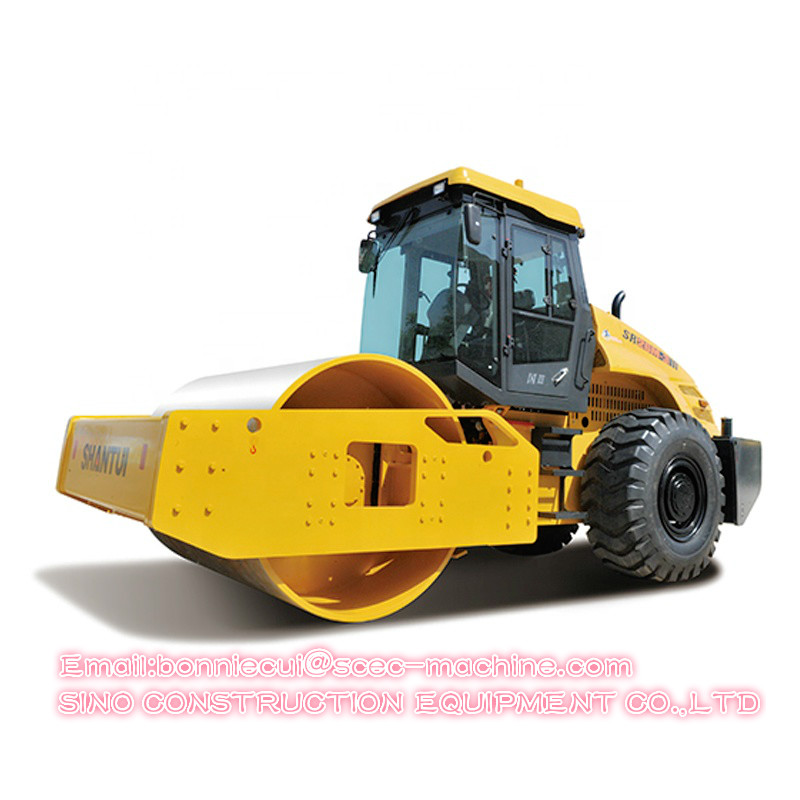

Photo of Construction Road Roller 25 Ton Mechanism Single Drum Road Roller
Our Services
1. We will do quality test from the production of each trailer part to the finish of the whole truck.
2. We have an experienced and technological team to customize the best products.
3. Spare Parts Supply:
We have our own spear parts departments, have strong production and distribution capability. We can satisfy your demand within 2-7 days. We always do our best to solve the problems, and put our customers' interests in the first place. And We can Supply Spare Parts For Many Brands, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.
FAQ
Q: How do you ensure the quality of product?
A: Our Factory is standard production workshop, got ISO CCC BV Certification, our workers are well trained. Our very product under goes a scrutinizing inspection process.
Q : Can you satisfy my special requirement?
A: Definitely ! We are located in manufacturer and we have strong producing capacity and R&D capacity!
Q : How about your warranty item?
A: We can support you with original spare parts, and email or telephone assistance in the following days. If necessary, our experienced engineer can go abroad to your place for technical support.
Q: How about the delivery time?
A: for stock trucks, we can delivery within 7 days, if the trucks are placed by order, we can finish production within 45 days, if specially ordered, We always need around 60 days for production.
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok .But we need take apart the truck. You should reinstall in your country. Or we ship it by rack flat deck container, if the whole length of the vehicle is below 12m
Q: How do you ensure the quality of product?
A: Our Factory is standard production workshop ISO CCC BV Certification , our workers are well trained. Our very product under goes a scrutinizing inspection process.
Q:I want to be your agent in my country , is that ok?
A: It’s ok, If your quantity is big, we will consider. For the first time 50 units is ok.
Q: I want the front two tyres are bias tyre and the rear 9 tyres are radial tyres, is it ok?
A: We can make the tyres as your requirement to suit your country's need.
Q: how to pay for the vehicles
A: Normally , we can accept T/T or L/C at sight payment terms.
Q: Can I get whole truck spare parts after using?
A: of course, we can provide all original spare parts for our machines
Product Tags:
|
|
SHANTUI SR26M-3 140KW 25 Ton Construction Road Roller Images
|
